Building Interactive HTMX Tables

TOM Toolkit provides base classes for building interactive data tables with filtering, sorting, and pagination that avoid full-page reloads using HTMX.

Three model-independent base classes in tom_common.htmx_table handle common concerns so that creating a new HTMX-driven table for any model is largely a configuration task. The provided classes are:

• HTMXTable - This class extends django_tables2.Table to add HTMX attributes to certain HTML elements, handle checkboxes, etc. Your subclass will define your table, specifying the Model supplying data to your table and the fields that will be displayed.

• HTMXTableFilterSet - Your subclass will define data filters and add HTMX elements to update your table as the filters change.

• HTMXTableViewMixin - This mix-in class must be added to your ListView subclasses that present their data in HTMXTable subclasses. It recognizes AJAX (HTMX) requests and adds pagination data to your ListView’s context.

Creating a Basic HTMX Table for Your Model

This section walks through the three pieces you need to get started: a Table class, a View, and a template. The Target list page provides an example implementation for each step.

Step 1: Define the Table

A tables.py module in your app or custom_code is good place to define your HTMXTable. Subclass HTMXTable in tables.py. The base class provides the Bootstrap/HTMX template, row-selection checkboxes, and all the Meta.attrs needed for sorting and pagination to work via HTMX. [1] Your subclass Meta.attrs must specify the model and fields to be displayed.

myapp/tables.py

from tom_common.htmx_table import HTMXTable  # HTMXTable is a django_tables2.Table subclass
from myapp.models import Observation  # for example

class ObservationTable(HTMXTable):

    # linkify makes the entry in the "name" column a link to the model detail page.
    name = tables.Column(
        linkify=True,
        attrs={"a": {"hx-boost": "false"}}
    )

    class Meta(HTMXTable.Meta):
        model = Observation
        fields = ['selection', 'name', 'date', 'status']

NOTES:

• Line 14: Include 'selection' in fields to enable row-selection checkboxes. All of the other fields should be model fields for your chosen model.

• Line 8: Use linkify=True on a column to turn cell values into links to the object’s detail page. If your model does not have a detail page, or a get_absolute_url() defined, including this will result in a TypeError.

• Line 9: The hx-boost="false" attribute ensures that clicking the link triggers a normal page navigation (to the object’s detail page) rather than being intercepted by HTMX. [2]

See the example in tom_targets/tables.py.

Step 2: Update the View

Add HTMXTableViewMixin before your existing List (or Filter) view. The mixin extends django_tables2.SingleTableMixin and handles HTMX request detection and template selection. It also adds record_count and empty_database to the template context. [4]

myapp/views.py

from django.views.generic.list import ListView

from tom_common.htmx_table import HTMXTableViewMixin
from myapp.models import Observation
from myapp.tables import ObservationTable

class ObservationListView(HTMXTableViewMixin, ListView):
    template_name = 'myapp/observation_list.html'
    model = Observation
    table_class = ObservationTable
    paginate_by = 20
    ordering = ['-date']

NOTES:

If you are updating an existing List/ FilterView then the HTMXTableViewMixin, line 11, defining table_class and the appropriate imports are the only changes you should need to make.

See the example in tom_targets/views.py.

Step 3: Set Up the Template

You will need to create or modify the template page used to display your table. The bootstrap HTMX template (for sorting and pagination) and a default partial template are provided by the base classes.

Table page template

The main table template includes a progress indicator and the table container.

The Table container includes the default partial template for generating the table. We will discuss overriding this a little later.

myapp/templates/myapp/observation_list.html

{% extends 'tom_common/base.html' %}

{% block title %}Observations{% endblock %}

{% block content %}
<div class="row">
  <div class="col-md-12">
    <h2>{{ record_count }} Observation{{ record_count|pluralize }}</h2>

    {# Progress indicator (CSS provided by TOM Toolkit base template) #}
    <div class="progress">
        <div class="indeterminate"></div>
    </div>

    {# Table container -- this is the HTMX swap target #}
    <div class="table-container">
        {% include table.get_partial_template_name %}
    </div>
  </div>
</div>
{% endblock content %}

See the reference implementation in tom_targets/templates/tom_targets/target_list.html.

At this point you should have an interactive table with sortable columns and pagination!

Add Search Bar

Next we will add search functionality to our table. We will start with a simple search bar and add more features later. This requires 3 steps:

• Creating the basic FilterSet

• Adding the FilterSet to our View

• Adding the Form to our Template

Step 1: Create the FilterSet

Subclass HTMXTableFilterSet from tom_common.htmx_table. The base class provides a General Search text field (query) with debounced HTMX attributes already configured. This general search will query all non-ForeignKey fields in your model by default. You can override general_search() with your model-specific search logic if you require more advanced functionality.

myapp/filters.py

from tom_common.htmx_table import HTMXTableFilterSet
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    class Meta:
        model = Observation
        fields = []

NOTES:

• The General Search fires after a short (debounced) pause in typing.

• For now we are going to leave the fields empty. If you want to add more complex filtering options, we will add fields here later.

Step 2: Add FilterSet to the View

Next we need to add the FilterSet to the view. Since we are adding filters, we can no longer rely on a simple ListView, and must use a FilterView instead. Note the highlighted changes.

myapp/views.py

from django_filters.views import FilterView

from tom_common.htmx_table import HTMXTableViewMixin
from myapp.models import Observation
from myapp.tables import ObservationTable
from myapp.filters import ObservationFilterSet

class ObservationListView(HTMXTableViewMixin, FilterView):
    template_name = 'myapp/observation_list.html'
    model = Observation
    table_class = ObservationTable
    filterset_class = ObservationFilterSet
    paginate_by = 20
    ordering = ['-date']

Step 3: Add your Form to the Template

Finally, we will head back to our primary table page template and insert the form with the relevant HTMX.

myapp/templates/myapp/observation_list.html

{% extends 'tom_common/base.html' %}
{% load crispy_forms_tags %}

{% block title %}Observations{% endblock %}

{% block content %}
<div class="row">
  <div class="col-md-12">
    <h2>{{ record_count }} Observation{{ record_count|pluralize }}</h2>

    <hr>
    {# Filter form -- id must match hx-include in the Table's Meta.attrs #}
    <form id="filter-form" class="mb-3"
          hx-get="{{ request.get_full_path }}"
          hx-target="div.table-container"
          hx-swap="outerHTML"
          hx-indicator=".progress">
        {% crispy filter.form %}
    </form>

    {# Progress indicator (CSS provided by TOM Toolkit base template) #}
    <div class="progress">
        <div class="indeterminate"></div>
    </div>

    {# Table container -- this is the HTMX swap target #}
    <div class="table-container">
        {% include table.get_partial_template_name %}
    </div>
  </div>
</div>
{% endblock content %}

Notes:

• Line 13: The id="filter-form" must match the "hx-include": "#filter-form" in HTMXTable.Meta.attrs so that filter values are preserved during sorting and pagination. This is handled in the base HTMXTable but these values could be overwritten if multiple tables were being used on the same page. [5]

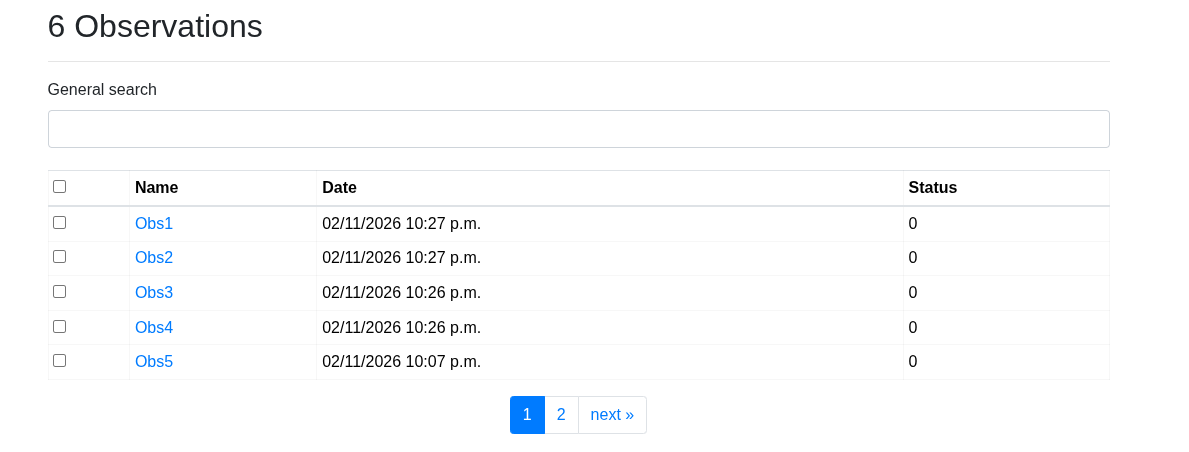

Now there should be a General Search Bar above your table:

Customization Options

We’ve got a basic sortable table with General Search Bar. If this is all you need, great! You’re done! But if you want to take advantage of some of the more advanced features, these next sections will focus on how to make these tools more specific to your use case.

Adding More Filters

The default general filter is great, but maybe you want to search specific fields or other more complex parameters. To do this we will need to modify our custom FilterSet. Let’s start by adding a dropdown selection for “status” to our filter list:

myapp/filters.py

import django_filters
from django import forms

from tom_common.htmx_table import HTMXTableFilterSet, htmx_attributes_instant
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    status = django_filters.ChoiceFilter(
        choices=Observation.OBSERVATION_STATUS_CHOICES,
        widget=forms.Select(attrs={htmx_attributes_instant})
    )

    class Meta:
        model = Observation
        fields = ['status']

NOTES:

• Line 4: We want to import our standard HTMX attributes that link this filter to the table. The TOMToolkit provides 3 default options:

  • htmx_attributes_instant for triggering instant changes. Here we want the table to update immediately upon selection.

  • htmx_attributes_onenter for triggering table changes when the user hits enter. This is best used for complicated fields where a search doesn’t make sense until all of the data is in.

  • htmx_attributes_delayed` for triggering changes after a short (200ms) delay. We use this for character fields where a partial input is still viable. [3]

• Lines 9: See the django-filter documentation for more information. Be sure to update the widget type on line 11 (forms.Select) to one that makes sense with your filter. See Django Widgets for options.

• Line 10: This should be whatever choices are for the field. You can manually put a in a set of choices if you want: ((1, 'Active'), (0, 'Inactive'))

• Line 11: This is where we include the HTMX attributes for this field that allow them to update the table without reloading the whole page.

• Line 16: Here we include the new field for this filter. All of the fields listed here will show up in a collapsed “Advanced” section by default.

You should now see a new “Advanced” collapsible menu appear under your general search bar containing all of your new filters.

These simple filters are easy to include and update just by referencing a different field/filter type. For example if we wanted to add a search field for the name as well, we would change the following:

myapp/filters.py

import django_filters
from django import forms

from tom_common.htmx_table import HTMXTableFilterSet, htmx_attributes_instant, htmx_attributes_delayed
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    status = django_filters.ChoiceFilter(
        choices=Observation.OBSERVATION_STATUS_CHOICES,
        widget=forms.Select(attrs={**htmx_attributes_instant})
    )

    name = django_filters.CharFilter(
        lookup_expr='icontains',
        widget=forms.TextInput(attrs={**htmx_attributes_delayed, 'placeholder': 'Observation Name'})
    )

    class Meta:
        model = Observation
        fields = ['name', 'status']

NOTES:

• Line 15: This line will make it so the query returns observations where the name contains the input. By default, without this line, it must be an exact match.

• Line 16: We can add other attributes to the form field by simply appending them to the dictionary. Here we add placeholder text that will show up in the field before an actual search value is provided.

Now, both fields should show up in the advanced section and the resulting search will use BOTH filters, effectively providing an AND between both of them and the general search, only returning results that match all filters.

Advanced Filters

Sometimes we want to do something a little more complicated than what the basic filters provide. For this we will need to write our own functions. Let’s make a filter for retrieving only recent observations. This will take the form of a checkbox in the advanced section. Note: We’ve removed the other filters for simplicity, but the advanced filters will work in concert with the others.

myapp/filters.py

from datetime import timedelta, datetime

import django_filters
from django import forms

from tom_common.htmx_table import HTMXTableFilterSet, htmx_attributes_instant,
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    def get_recent(self, queryset, name, value):
        """
        Retrieve recent observations from within the last 24 hours

        :param queryset: The current filtered queryset. By filtering on this queryset,
            we respect the filters that precede this method in the filter chain.
        :param name: The name of the filter field calling this method (e.g. 'recent').
        :param value: The user's input from the form field.

        :Return queryset: Filtered queryset
        """
        if not value:
            return queryset  # early return

        yesterday = datetime.now() - timedelta(days = 1)
        return queryset.filter(date__gt=yesterday)

    recent = django_filters.BooleanFilter(
        label='New Observations',
        method = 'get_recent',
        help_text = 'Include only observations from within the last 24 hours',
        widget=forms.CheckboxInput(attrs={**htmx_attributes_instant})
    )

    class Meta:
        model = Observation
        fields = ['recent']

NOTES:

• Lines 11-26: We need to provide a function that performs our arbitrary query.

• line 31: We can add help text to our fields as well.

Including Model Properties In the Table Columns

To include a model property (a model method tagged with the @property tag) we need to be a little cautious. Because the calculated properties are not present in the DB, and therefore are not as easy to sort on.

Unsortable Properties

If you don’t want to sort on a property, just have it displayed in the table, then it is fairly simple. Here we include observation.example_property in our table:

myapp/tables.py

from tom_common.htmx_table import HTMXTable  # HTMXTable is a django_tables2.Table subclass
from myapp.models import Observation  # for example

class ObservationTable(HTMXTable):

    example_property = tables.Column('Example Property Verbose Name', orderable=False)

    class Meta(HTMXTable.Meta):
        model = Observation
        fields = ['selection', 'name', 'date', 'example_property', 'status']

NOTES:

• Line 6: We set orderable = False to prevent errors when trying to sort this as a DB field.

Sortable Properties

Things get a bit more complex when we try to sort by properties. See the django_tables2 docs for more specifics, but basically we have to build our own sorting method using python and store the primary keys in the proper order. The TOMtoolkit offers a basic version of this via HTMXTable.model_property_ordering. The usage of this method is demonstrated below, but caution should be used before implementing this. This is very expensive for large databases, and should only be done if your table won’t ever hold too many objects.

myapp/tables.py

from django.db.models import Case, When

from tom_common.htmx_table import HTMXTable  # HTMXTable is a django_tables2.Table subclass
from myapp.models import Observation  # for example

class ObservationTable(HTMXTable):

    example_property = tables.Column('Example Property Verbose Name', orderable=True)

    def order_example_property(self, queryset, is_descending):
        return self.model_property_ordering(queryset, is_descending, model_property='example_property')

    class Meta(HTMXTable.Meta):
        model = Observation
        fields = ['selection', 'name', 'date', 'example_property', 'status']

NOTES:

• Line 10 and 11: Update these line with your property.

Formatting Our Form

So far we have relied on the default formatting with the general Search bar above our hidden advanced filters, and the different advanced filters sorting themselves into rows and columns in the order they are entered into our Meta.fields. We can customize this by overwriting our default form layout. Consult django-crispy-forms for details on how to build a Layout. Here we will include most of the same infrastructure as before, but put each form field in its own row:

myapp/filters.py

from crispy_forms.layout import Layout, Div, Row, Column, HTML
import django_filters
from django import forms

from tom_common.htmx_table import HTMXTableFilterSet, htmx_attributes_instant, htmx_attributes_delayed
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    status = django_filters.ChoiceFilter(
        choices=Observation.OBSERVATION_STATUS_CHOICES,
        widget=forms.Select(attrs={**htmx_attributes_instant})
    )

    name = django_filters.CharFilter(
        lookup_expr='icontains',
        widget=forms.TextInput(attrs={**htmx_attributes_delayed, 'placeholder': 'Observation Name'})
    )

    @property
    def form(self):
        if not hasattr(self, '_form'):
            self._form = super().form
            self._form.helper.layout = Layout(
                Row(
                    Column('query', css_class='form-group col-md-3'),  # This is how we include the General Search
                ),
                HTML("""
                <div class="row">
                    <div class="col-md-12 mb-2">
                        <a class="btn btn-link p-0" data-toggle="collapse"
                            href="#advancedFilters"
                            role="button" aria-expanded="false"
                            aria-controls="advancedFilters">Advanced &rsaquo;</a>
                    </div>
                </div>
                """),
                Div(
                    Row(
                        Column('name', css_class='form-group col-md-3'),
                    ),
                    Row(
                        Column('status', css_class='form-group col-md-3'),
                    ),
                    css_class='collapse',
                    css_id='advancedFilters',
                )
            )
        return self._form

    class Meta:
        model = Observation
        fields = ['name', 'status']

NOTES:

• Lines 28-37, 45-46: This handles the collapsible window.

• lines 40 and 43: Here we handle our fields, name and status.

See the example in tom_targets/filters.py.

Customizing General Search

The default General search is quite broad and might even include fields that you don’t want included in the table. There are several options for customizing this search functionality.

The HTMXTableFilterSet base class provides three ways to customize the General Search behavior, in order of simplicity.

Override general_search()

The most direct approach. Override the method in your HTMXTableFilterSet subclass:

myapp/filters.py

from django.db.models import Q

from tom_common.htmx_table import HTMXTableFilterSet
from myapp.models import Observation

class ObservationFilterSet(HTMXTableFilterSet):

    def general_search(self, queryset, name, value):
    """This general_search method searches the ``name`` and ``observer.username``
    Model fields for the text in the ``query`` CharField of the ``FilterSet``.
    """
        if not value:
            return queryset
        return queryset.filter(
            Q(name__icontains=value) |
            Q(observer__username__icontains=value)
        )

    class Meta:
        model = Observation
        fields = []

Settings-Based Override (GENERAL_SEARCH_FUNCTIONS)

Register a standalone function in settings.py without subclassing anything. This is useful in a custom_code app where you want to change the search behavior for an existing TOM Toolkit model.

settings.py

GENERAL_SEARCH_FUNCTIONS = {
    'tom_targets.Target': 'custom_code.search.my_target_search',
}

custom_code/search.py

from django.db.models import Q

def my_target_search(queryset, name, value):
    """
        Change the existing general search function on the Target List page to include aliases as well as
        target names.
    """
    if not value:
        return queryset
    return queryset.filter(
        Q(name__icontains=value) |
        Q(aliases__name__icontains=value)
    ).distinct()

The key to the GENERAL_SEARCH_FUNCTIONS dictionary is 'app_label.ModelName' (e.g. 'tom_targets.Target') and the value is a dotted path to a callable with the signature (queryset, name, value) -> QuerySet. If a matching entry exists in GENERAL_SEARCH_FUNCTIONS, it takes priority over the FilterSet’s general_search() method.

Override get_general_search_function()

For full control, override get_general_search_function() in a FilterSet subclass. This lets you return any callable based on runtime conditions.

custom_code/filters.py

from tom_targets.filters import TargetFilterSet
from django.db.models import Q

class CustomTargetFilterSet(TargetFilterSet):
    """Override the general search without changing the View."""

    def get_general_search_function(self):
        return self.my_custom_search

    def my_custom_search(self, queryset, name, value):
        """
            Change the existing general search function on the Target List page to include aliases as well as
            target names.
        """
        if not value:
            return queryset
        return queryset.filter(
            Q(name__icontains=value) |
            Q(aliases__name__icontains=value)
        ).distinct()

Then point your view at the custom FilterSet:

custom_code/views.py

from tom_targets.views import TargetListView
from custom_code.filters import CustomTargetFilterSet

class CustomTargetListView(TargetListView):
    filterset_class = CustomTargetFilterSet

General Search Examples

Note: These examples are given in the context of modifying the general search functionality, but could just as easily be used on their own to define one of your Advanced Filters described above.

Multi-field search

Using Django’s Q objects (docs):

def general_search(self, queryset, name, value):
    if not value:
        return queryset
    return queryset.filter(
        Q(name__icontains=value) |
        Q(description__icontains=value) |
        Q(observer__username__icontains=value)
    )

Type-based search

Detect numeric input and search coordinate fields:

from decimal import Decimal, InvalidOperation

def general_search(self, queryset, name, value):
    if not value:
        return queryset

    if value.replace(".", "", 1).replace("-", "", 1).isdigit():
        try:
            numeric_value = Decimal(value)
            return queryset.filter(
                Q(ra__icontains=numeric_value) |
                Q(dec__icontains=numeric_value)
            )
        except (InvalidOperation, ValueError):
            pass

    return queryset.filter(Q(name__icontains=value))

Comma-separated search

With OR logic:

def general_search(self, queryset, name, value):
    if not value:
        return queryset

    # extract search terms from the input value
    terms = [term.strip() for term in value.split(',')]
    q_objects = Q()
    for term in terms:
        q_objects |= (
            Q(name__icontains=term) |
            Q(aliases__name__icontains=term)
        )
    return queryset.filter(q_objects).distinct()

Overwriting the Table Partial

The base class provides a default partial template at tom_common/partials/htmx_table_partial.html that renders the table and shows a generic empty-state (no data) message.

If you need a custom partial (e.g. model-specific empty-state messages), create one and set partial_template_name on your Table subclass:

myapp/tables.py

from tom_common.htmx_table import HTMXTable
from myapp.models import Observation

class ObservationTable(HTMXTable):

    # specify the path to your custom partial for you table
    partial_template_name = "myapp/partials/observation_table_partial.ht

    class Meta(HTMXTable.Meta):
        model = Observation
        fields = ['name', 'date', 'status']

myapp/templates/myapp/partials/observation_table_partial.html

{% load render_table from django_tables2 %}

{% render_table table %}

{% if not table.data %}
    <div class="alert alert-info mt-3">
        {% if empty_database %}
            No observations in the database yet.
        {% else %}
            No observations match those filters.
        {% endif %}
    </div>
{% endif %}

See the reference implementation in tom_targets/templates/tom_targets/partials/target_table_partial.html.

Note: tom_common/partials/htmx_table_partial.html contains the javascript necessary to make the check box selection work properly. If you intend to include checkboxes, you will want to copy this script into your partial as well.

Best Practices

• FilterSet``s pass a queryset from Filter to Filter. So, always return the queryset unchanged when ``value is empty

• Use .distinct() when searching across related model fields

Troubleshooting

HTMX returns the full page instead of the partial

Check that django_htmx.middleware.HtmxMiddleware is in your MIDDLEWARE setting and that your view includes HTMXTableViewMixin.

Filters are lost when sorting or paginating

Ensure your filter form has id="filter-form" (matching the "hx-include": "#filter-form" in HTMXTable.Meta.attrs).

Progress indicator does not appear

Verify that <div class="progress"><div class="indeterminate"></div></div> is present in your main page template and that hx-indicator=".progress" is set on the interactive elements.

General search is not filtering results

Check that your FilterSet subclasses HTMXTableFilterSet and that general_search() returns a filtered queryset (not None).

Where to Find More Information

• django-tables2 documentation

• HTMX documentation

• django-filter documentation

• django-htmx documentation

Footnotes

[1]

HTMXTable inherits from django_tables2.Table and sets Meta.template_name to a shared Bootstrap/HTMX template that adds HTMX attributes to column headers (for sorting) and pagination controls. It also sets Meta.attrs with hx-include, hx-target, hx-swap, and hx-boost.

[2]

hx-boost="true" on the <table> element (set by HTMXTable.Meta.attrs) intercepts the <a> tags that django-tables2 generates for sorting and pagination, converting them into HTMX AJAX requests. Links to detail pages use hx-boost="false" to opt out and trigger normal navigation.

[3]

The htmx_attributes_delayed dicitonary includes a delay:200ms modifier that acts as a debounce – the request is only sent after the user stops typing for 200ms. Combined with hx-sync="this:replace", any in-flight request is cancelled and replaced by the latest one, preventing race conditions.

[4]

HTMXTableViewMixin checks self.request.htmx (provided by django_htmx.middleware.HtmxMiddleware). When an HTMX request arrives, only the partial template is returned; otherwise the full page template is used. The record_count context variable comes from context['paginator'].count.

[5]

Without hx-include, sorting and pagination requests would not carry the current filter parameters, causing the table to reset its filters on every sort or page change.
